- Metal

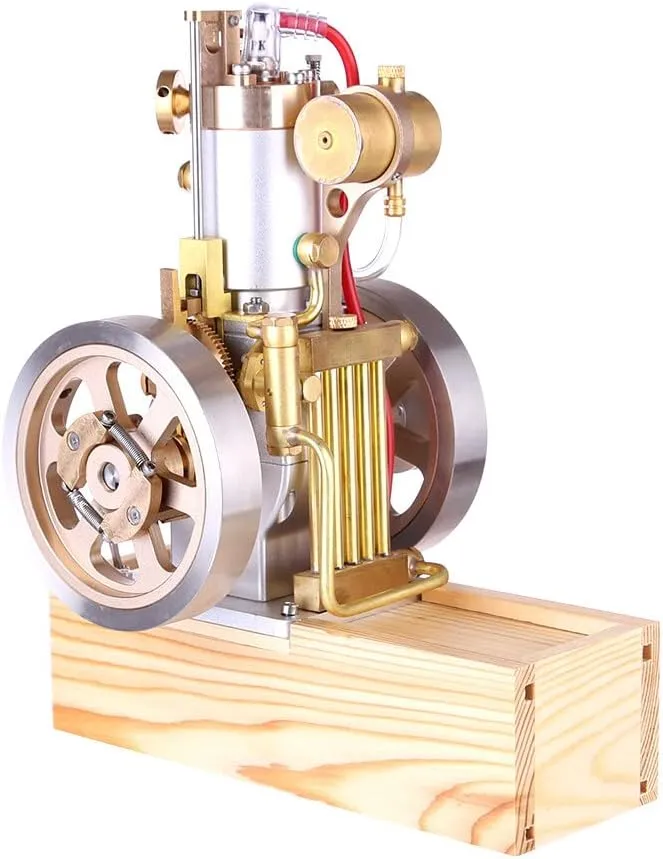

- ✅ 【Simulation Vertical Hit and Miss Engine Kit that Works 】-- Product Size: 18 x 12.5 x 22cm / 7x 5 x 9 inch. Cylinder diameter: 2.2cm. Stroke: 20mm. Displacement: 6CC. Revolution: 1200rmp/min
- ✅【 Authentic Reproduction 】-- This is a vertical engine, we have upgraded, added a mechanical water pump, cooling water tank, it can carry out water cooling cycle. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
- ✅【Ready to Run】-- The outer pulley is easy to start by hand. You will love this exquisite horizontal gasoline engine model. Equipped with wooden base for easy placement and function. Flywheel inner pulley can realize functions such as power generation or pump pumping.
- ✅【Full Metal 】-- The engine is elaborately made of all metal, and the surface is polished to make it very smooth. The engine is fixed on the wooden base, the structure is stable and reliable
- ✅ 【 Perfect Gift for Collectors 】-- Whether for seasoned collectors or those passionate about mechanical marvels, our IC Engine model makes a unique and unforgettable gift. Offer a nostalgic and enamored tribute to this timeless industrial history.
✅Engine Startup Steps: 1.Open the bottom plate to check the wiring of the engine, connect the fuel tank pipe, and install the three AA batteries (not included) to close the bottom plate. 2.Fill the fuel tank with gasoline (95). When the filling is completed, make sure there is no air in the oil pipe. 3.On the right side of the engine, slowly turn clockwise to buy more than one turn, its role can make the mixed gasoline fully enter the cylinder. 4.Turn on the power switch and turn the flywheel clockwise to start the engine clockwise on the right side of the engine.
✅Precautions: 1.If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it is very likely that the carburetor needle should be adjusted. 2.screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel, This can be done several times to make the mixing ratio of gasoline and air reach the normal working mix ratio. 3.Check if the water tank lacks water. If there is air in thecooling pipe, the pump can't work normally. Need to loosen the water pump outlet screw. Turn the engine to exhaust. When it is normal, the water is pumped out. Screw the screw.
Specifications:
.Color: As Shown
.Material: Metal Wood
.Product Size: 18 x 12.5 x 22cm
.Product Weight: 1610g
.Package Dimensions: 26 x 25 x 25cm
.Package Weight: 2257g
.Packing: Box
Package Including
.1 x Gas Engine Model
.1 x Hand Start Device
